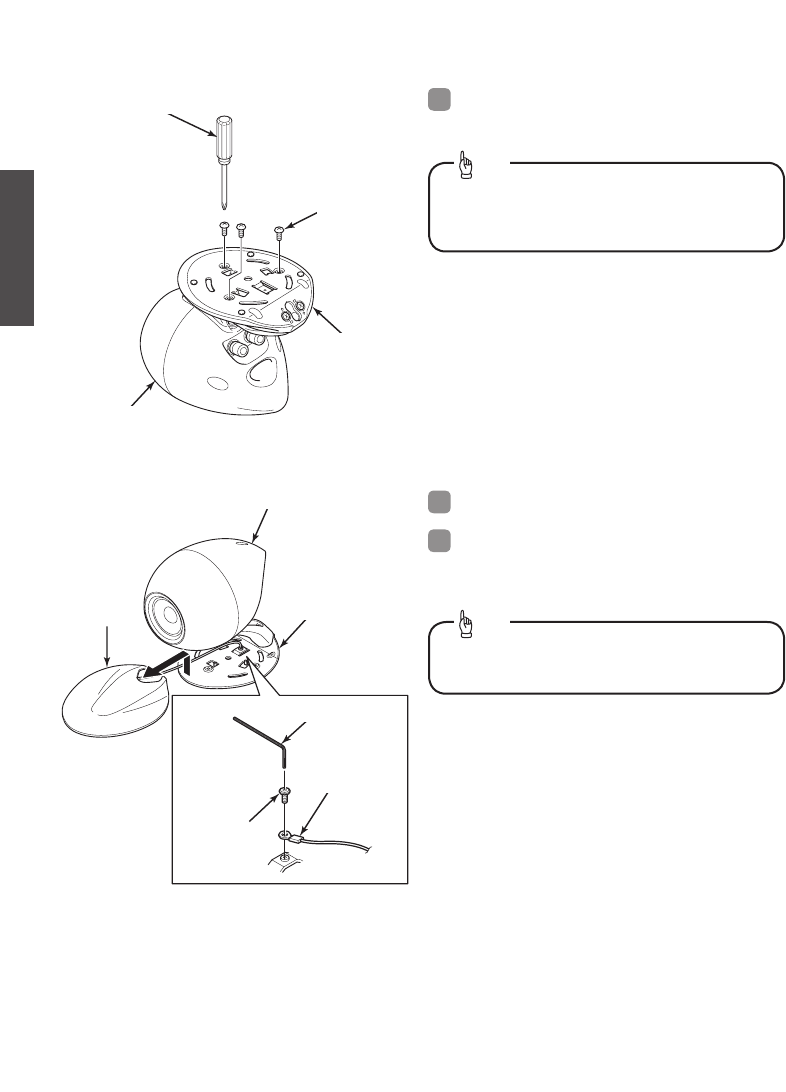

Remove the hexagon head screw which is used for

securing the speaker base cover safety cable from

the speaker base.

Remove the speaker base cover.

Remove the screws from the bottom of the speaker

base.

Speaker base

cover

Speaker base

cover safety

cable

Hexagon

head screw

Speaker base

Screws x3

Speaker base

The hexagonal head bolt which is removed will be

used later, so be careful not to lose it.

　Tip

The screws which are removed will not be used.

Retain these screws in case they are required in the

future.

　Tip

Preparation for installation

①Speaker

Screwdriver

①Speaker

④Allen key (small)
